Scroll Compressor A-Series

Inverter refrigeration with R-404A/R-407H/R-452A

Features

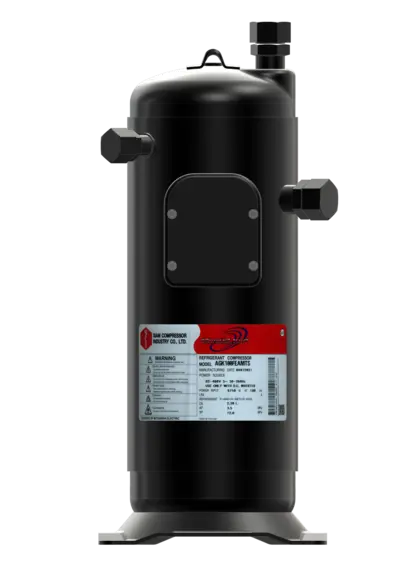

In line with the greener solution concept, ME-SCI has developed the new AGK compressor for refrigerated trailers that utilizes Mitsubishi Electric's inverter technology to achieve precise temperature control, energy savings, and environmental friendliness. This compressor is suitable for both medium and low-temperature applications and is compatible with R407H and R452A, low GWP refrigerants that offer reduced Global Warming Potential (GWP) compared to conventional R404A refrigerants commonly used today.

The AGK compressor is designed for smoother operation by featuring a patented shaft stopper, a new technology that enhances resistance to external vibrations. Additionally, it's equipped with a rotalock system, simplifying maintenance and making it ideally suited for refrigerated trailers.

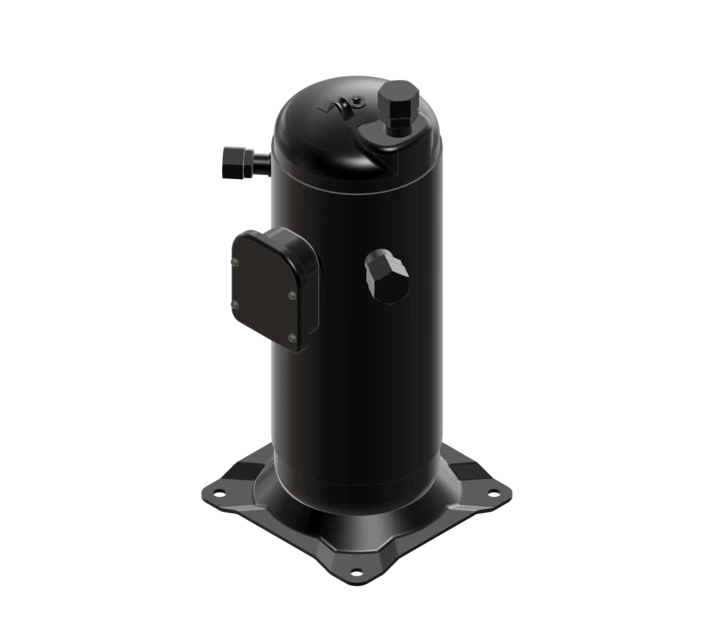

ISOMETRIC Inverter compressor series A

Specifications

Displacement (CC) 100.0 - 100.0
motor type - BLDCM
Nominal output (Watt) 8000
rate voltage 82 - 400
phase 3
motor protector External
Oil type
piping vibration Limit Maximum 0.8 mm.
Specifications subject to change without notice

Compressor Models

Model Capacity (W) Hz Input (W) COP (W/W) EER (Btu/hr*w) PHASE RUN CAP. (MF/VAC) Weight (kg) Oil Q’ty (cc) Oil Solution Sound Solution
AGK100FEAMTS 22,400 (ARI) 180 6,750 3.31 - 3 - 43.2 2300 - -
